3 phase Dry type distribution transformer
SCB18-(30-2500)/10
Quantity

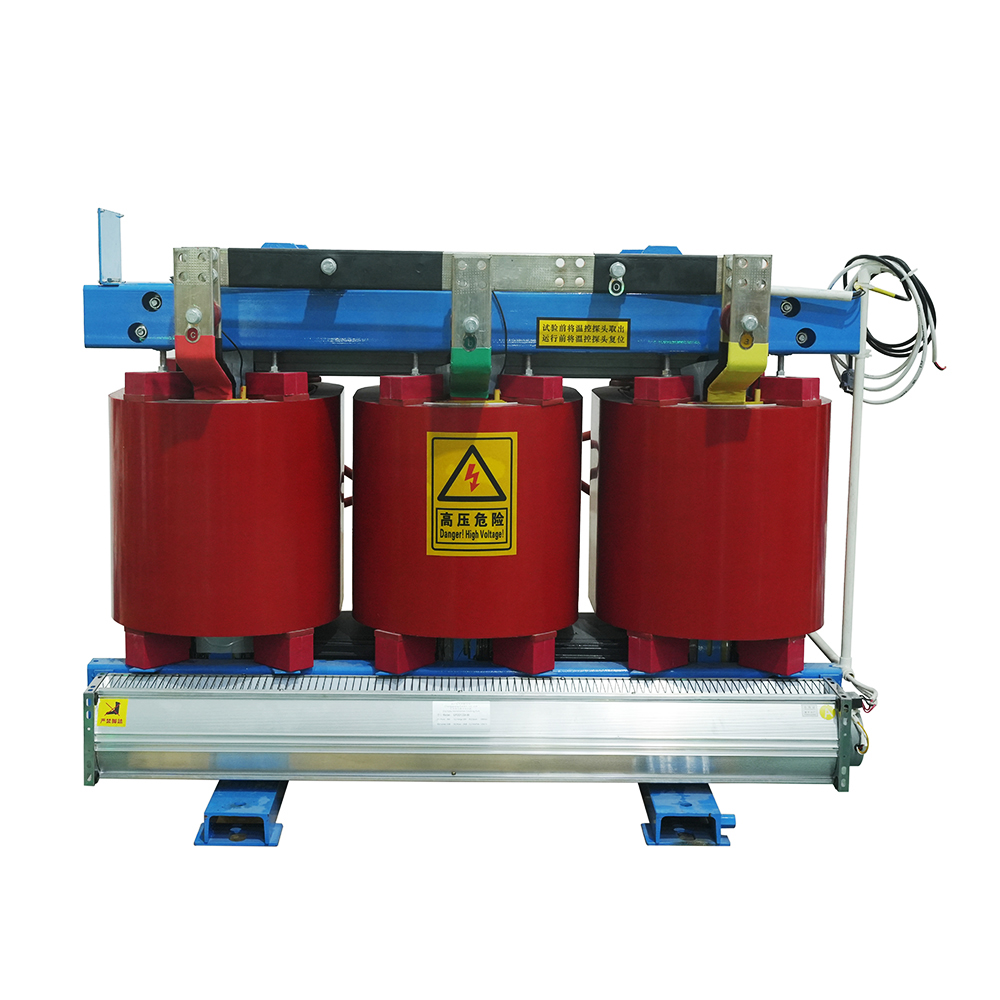

SCB Series Three-Phase Dry Type Distribution Transformer
SCB10/SCB12/SCB13/SCB14/SCB18, High Efficiency, Low Loss
Key Advantages
- Series: SCB10/SCB12/SCB13/SCB14/SCB18
- Capacity: 30kVA - 2500kVA
- Voltage: 6/6.3/6.6/10/10.5/11/20/22/24/35/36/37/38.5kV
- Low Voltage: 0.4kV (customizable)
- Tap Range: ±2×2.5% / ±5%
- Connection Group: Dyn11 / Yyn0
- Epoxy Cast Resin, Copper Foil Winding
Model Specification
S C B (B) - □ / □
① ② ③ ④ ⑤ ⑥
① S : Three-phase
② C : Cast resin
③ B : Copper foil winding
④ Second (B) : Insulation class (optional)
⑤ First □ : Rated capacity (kVA)
⑥ Second □ : System nominal voltage (kV)
Technical Specifications
| SCB18-(30-2500)/10 3 phase Dry type distribution transformer | |||||||||||||
| Rated capacity (kVA) | Voltage combination | Connection group label | No-load loss (W) | Load loss(W) | No-load current (%) | Impedance voltage (%) | Sound Level (dB) | Overall dimension (L×w×h) | Total weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| High voltage (kV) | Tap range | Low voltage (kV) | 130℃(B) 100℃ | 155℃(F) 120℃ | 180℃(H) 145℃ | ||||||||
| 30 | 6 | ±2×2.5% | 0.4 | Dyn11 | 170 | 670 | 710 | 760 | 0.6 | 4 | 57 | 900×900×800 | 300 |
| 50 | 6 | ±2×2.5% | 0.4 | Dyn11 | 240 | 940 | 1000 | 1070 | 0.6 | 4 | 57 | 955×900×900 | 350 |
| 80 | 6 | ±2×2.5% | 0.4 | Dyn11 | 330 | 1290 | 1380 | 1480 | 0.6 | 4 | 58 | 985×950×960 | 400 |
| 100 | 6 | ±2×2.5% | 0.4 | Dyn11 | 360 | 1480 | 1570 | 1690 | 0.6 | 4 | 58 | 1035×1250×980 | 450 |
| 125 | 6 | ±2×2.5% | 0.4 | Dyn11 | 420 | 1740 | 1850 | 1990 | 0.6 | 4 | 59 | 1060×1280×1000 | 500 |
| 160 | 6 | ±2×2.5% | 0.4 | Dyn11 | 480 | 2000 | 2130 | 2280 | 0.6 | 4 | 59 | 1120×1320×1050 | 680 |
| 200 | 6 | ±2×2.5% | 0.4 | Dyn11 | 550 | 2370 | 2530 | 2710 | 0.5 | 4 | 60 | 1135×1330×1105 | 770 |
| 250 | 6 | ±2×2.5% | 0.4 | Dyn11 | 640 | 2590 | 2760 | 2960 | 0.5 | 4 | 60 | 1170×1330×1165 | 900 |
| 315 | 6.3 | ±4% | 0.4 | Dyn11 | 790 | 3270 | 3470 | 3730 | 0.5 | 4 | 62 | 1185×1360×1225 | 1010 |
| 400 | 6.6 | ±4% | 0.4 | Dyn11 | 880 | 3750 | 3990 | 4280 | 0.4 | 4 | 62 | 1210×1380×1300 | 1205 |
| 500 | 10 | ±5% | 0.4 | Dyn11 | 1040 | 4590 | 4880 | 5230 | 0.4 | 4 | 63 | 1245×1400×1380 | 1400 |
| 630 | 10.5 | ±5% | 0.4 | Dyn11 | 1200 | 5530 | 5880 | 6290 | 0.4 | 4 | 63 | 1295×1410×1355 | 1515 |
| 630 | 11 | ±5% | 0.4 | Dyn11 | 1170 | 5610 | 5960 | 6400 | 0.3 | 6 | 63 | 1295×1410×1355 | 1515 |
| 800 | 10 | ±5% | 0.4 | Dyn11 | 1360 | 6550 | 6960 | 7460 | 0.3 | 6 | 65 | 1375×1450×1480 | 1880 |
| 1000 | 10 | ±5% | 0.4 | Dyn11 | 1590 | 7650 | 8130 | 8760 | 0.3 | 6 | 65 | 1430×1480×1525 | 2170 |
| 1250 | 10 | ±5% | 0.4 | Dyn11 | 1880 | 9100 | 9690 | 10300 | 0.25 | 6 | 67 | 1480×1500×1570 | 2525 |
| 1600 | 10 | ±5% | 0.4 | Dyn11 | 2200 | 11000 | 11700 | 12500 | 0.25 | 6 | 67 | 1500×1520×1710 | 2980 |
| 2000 | 10 | ±5% | 0.4 | Dyn11 | 2740 | 13600 | 14400 | 15500 | 0.2 | 6 | 69 | 1570×1550×1735 | 3480 |
| 2500 | 10 | ±5% | 0.4 | Dyn11 | 3240 | 16100 | 17100 | 18400 | 0.2 | 6 | 69 | 1625×1600×1825 | 4080 |
| 1600 | 10 | ±5% | 0.4 | Dyn11 | 2200 | 12200 | 12900 | 13900 | 0.25 | 8 | 67 | 1500×1520×1710 | 2980 |
| 2000 | 10 | ±5% | 0.4 | Dyn11 | 2740 | 15000 | 15900 | 17200 | 0.2 | 8 | 69 | 1570×1550×1735 | 3480 |
| 2500 | 10 | ±5% | 0.4 | Dyn11 | 3240 | 17700 | 18800 | 20200 | 0.2 | 8 | 69 | 1625×1600×1825 | 4080 |
| Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering. | |||||||||||||
Applications
SCB series dry type transformers are widely used in:
- Commercial buildings, shopping malls and office towers
- Data centers, hospitals and schools
- Underground substations and indoor power distribution rooms
- Industrial plants, workshops and manufacturing facilities
- Public utilities and renewable energy projects
