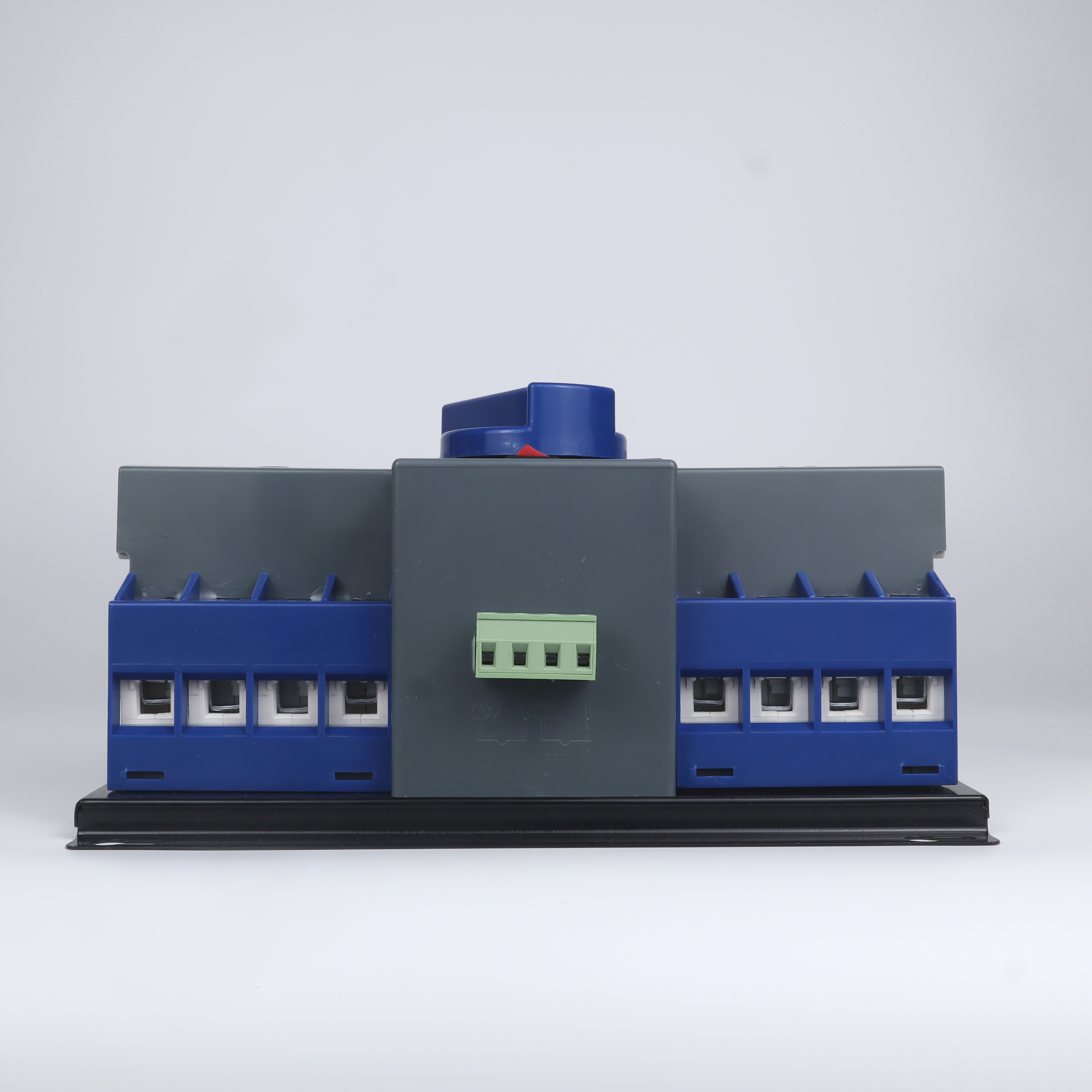

Automatic Transfer Switch
ATS1-63 2P/3P/4P
An Automatic Transfer Switch (ATS) is a device that automatically transfers power from its main source to a backup source when a fault or interruption is detected in the main power supply. When the main power system fails, the ATS invokes the backup power, similar to an uninterruptible power supply. The ATS1-63M series automatic transfer switching equipment is suitable for AC 50/60Hz, rated operating voltage 400V, rated current up to 63A, and dual power supply switching systems. It is used to ensure uninterrupted power supply in places such as hospitals, shopping malls, banks, fire departments, and high-rise buildings where prolonged power outages are not allowed.
Quantity
Product Overview
- Model: ATS1-63A
- Poles: 2P, 3P, 4P
- Rated Voltage Ue (V) AC: 400V
- Rated Current In (A) AC: 6, 10, 16, 20, 25, 32, 40, 50, 63
- Frequency (Hz): 50/60
- Control Voltage (V): 220V
- Transfer Time (seconds): 1.5～3s
- Mechanical Life (cycles): 10,000
Features & Advantages
- Compact size, simple structure.
- Easy to operate, long service life.
- The transfer switch is driven by a single motor, ensuring smooth operation, low noise, and minimal impact. It features both mechanical and electrical interlocks, allowing manual or automatic power switching.
- Equipped with short-circuit, overload, overvoltage, undervoltage, phase loss protection, and intelligent alarm functions.

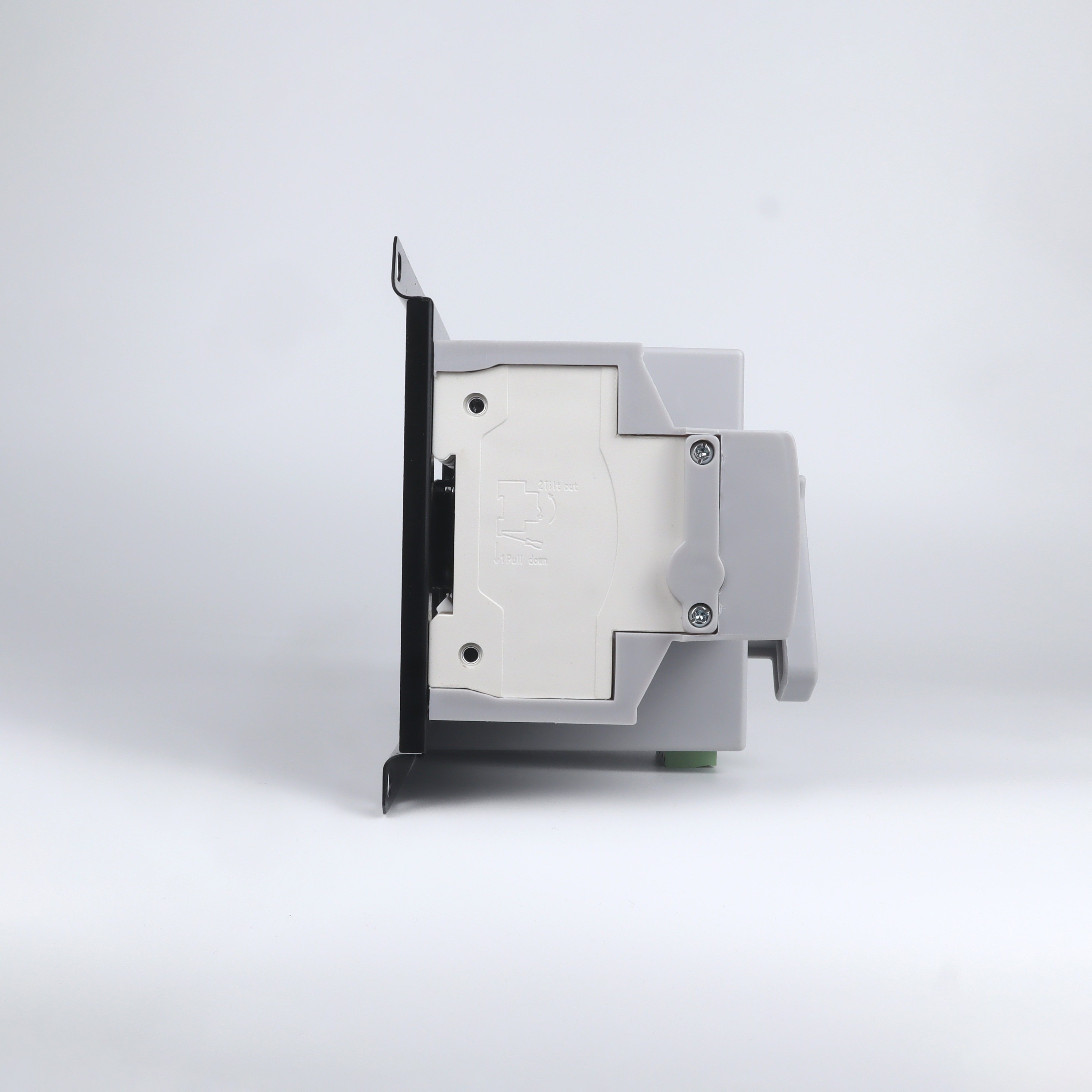

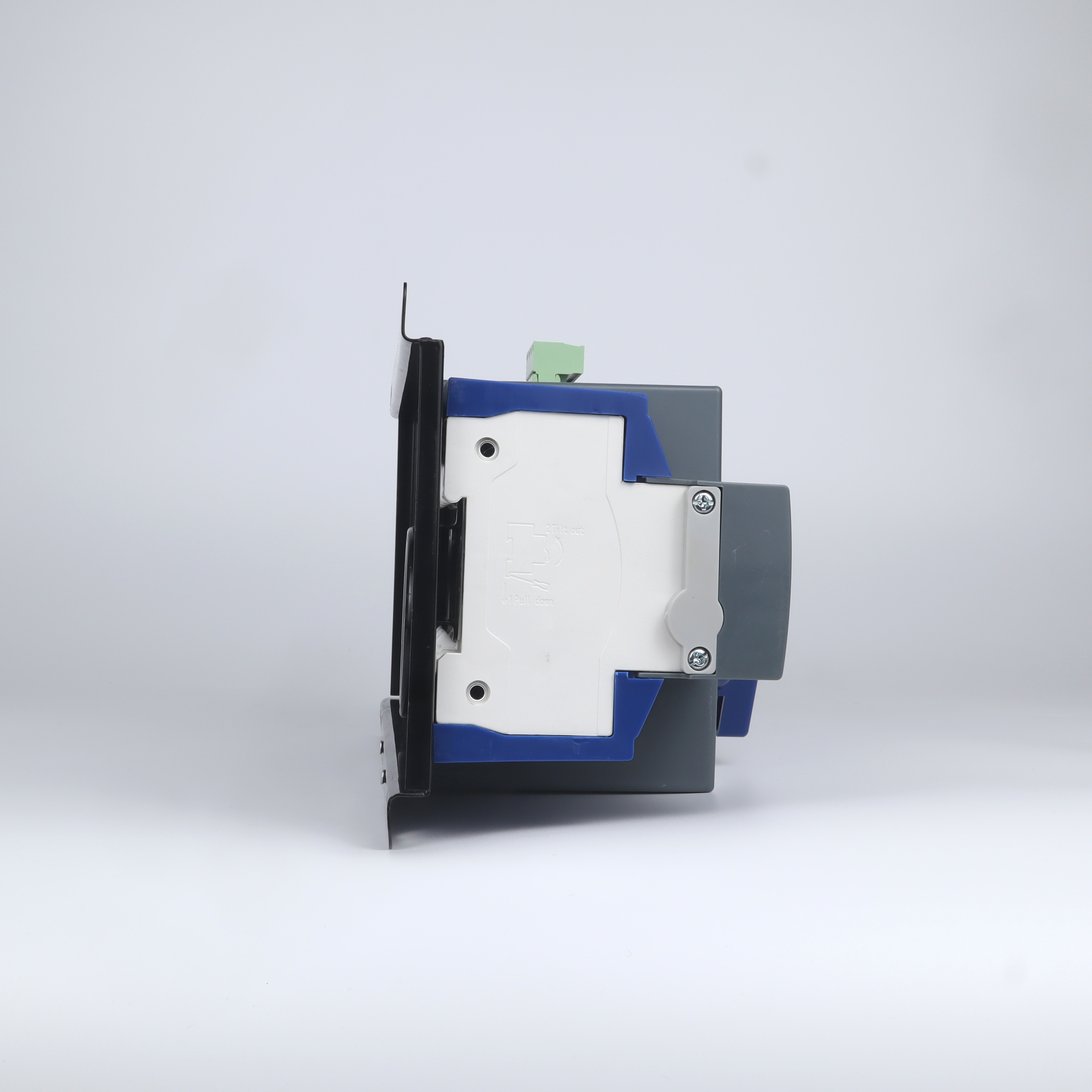

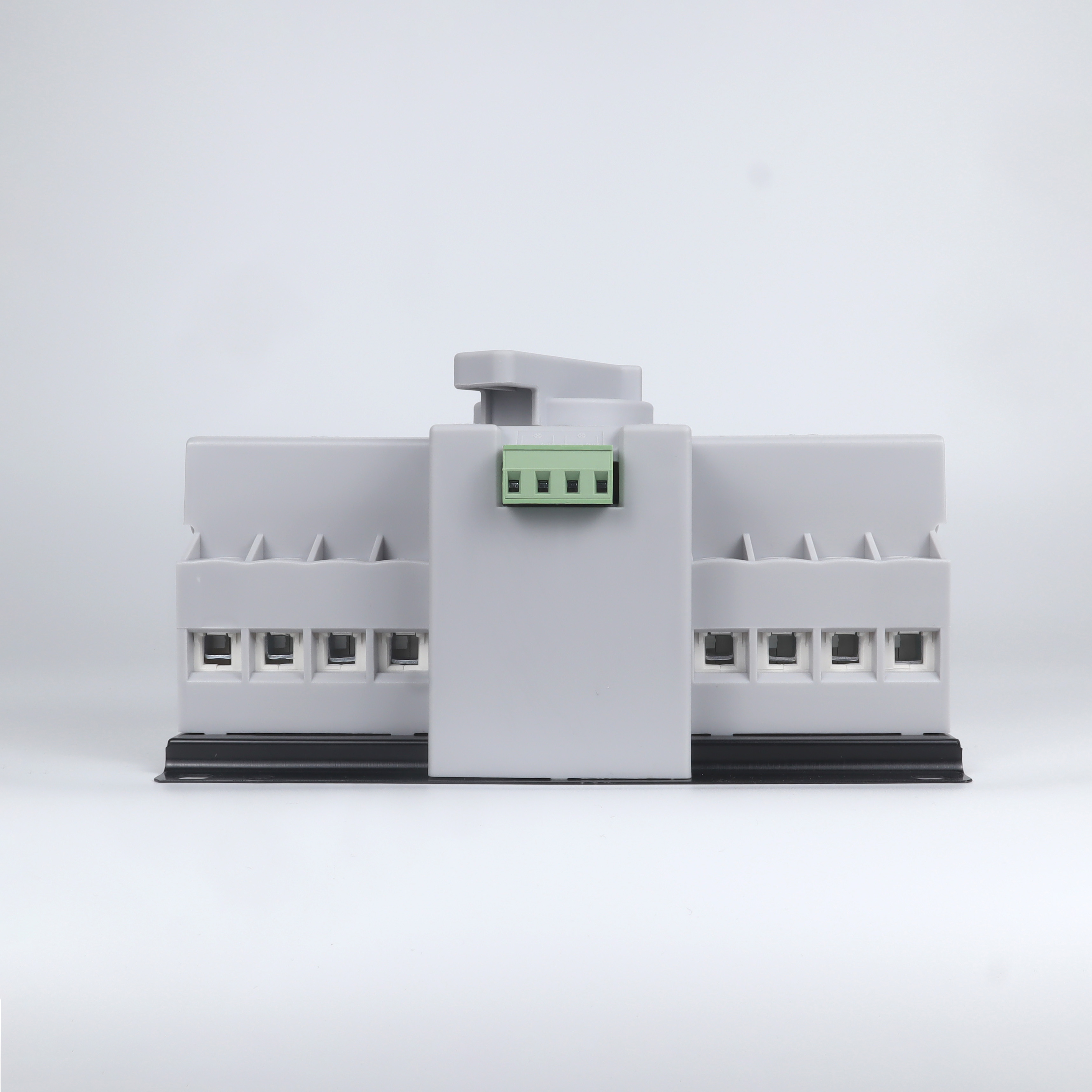

Product details gallery

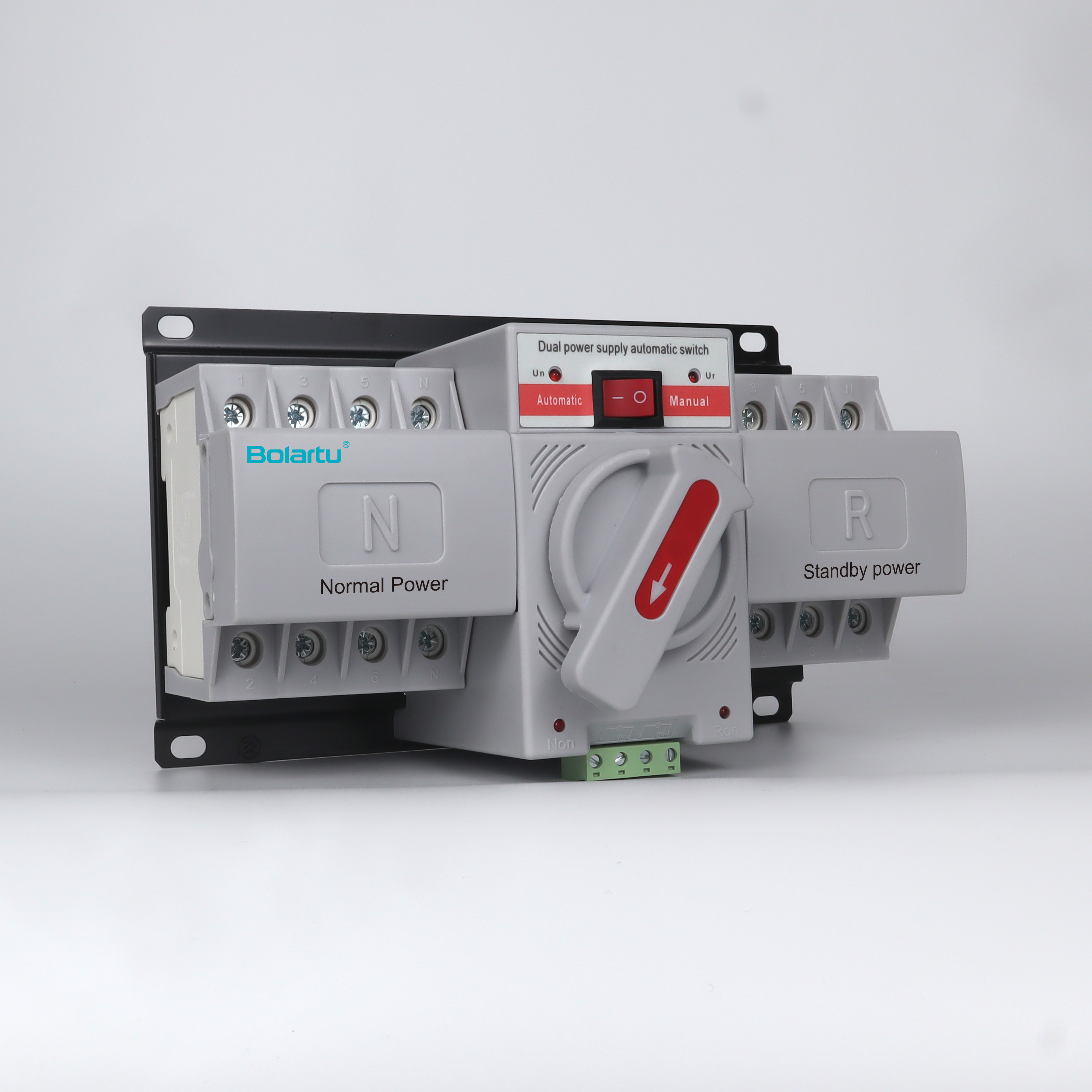

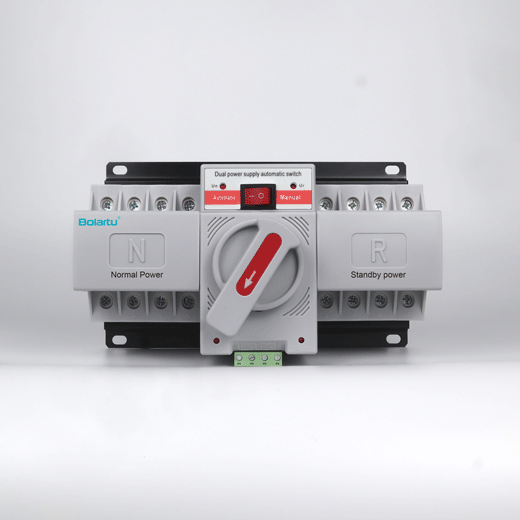

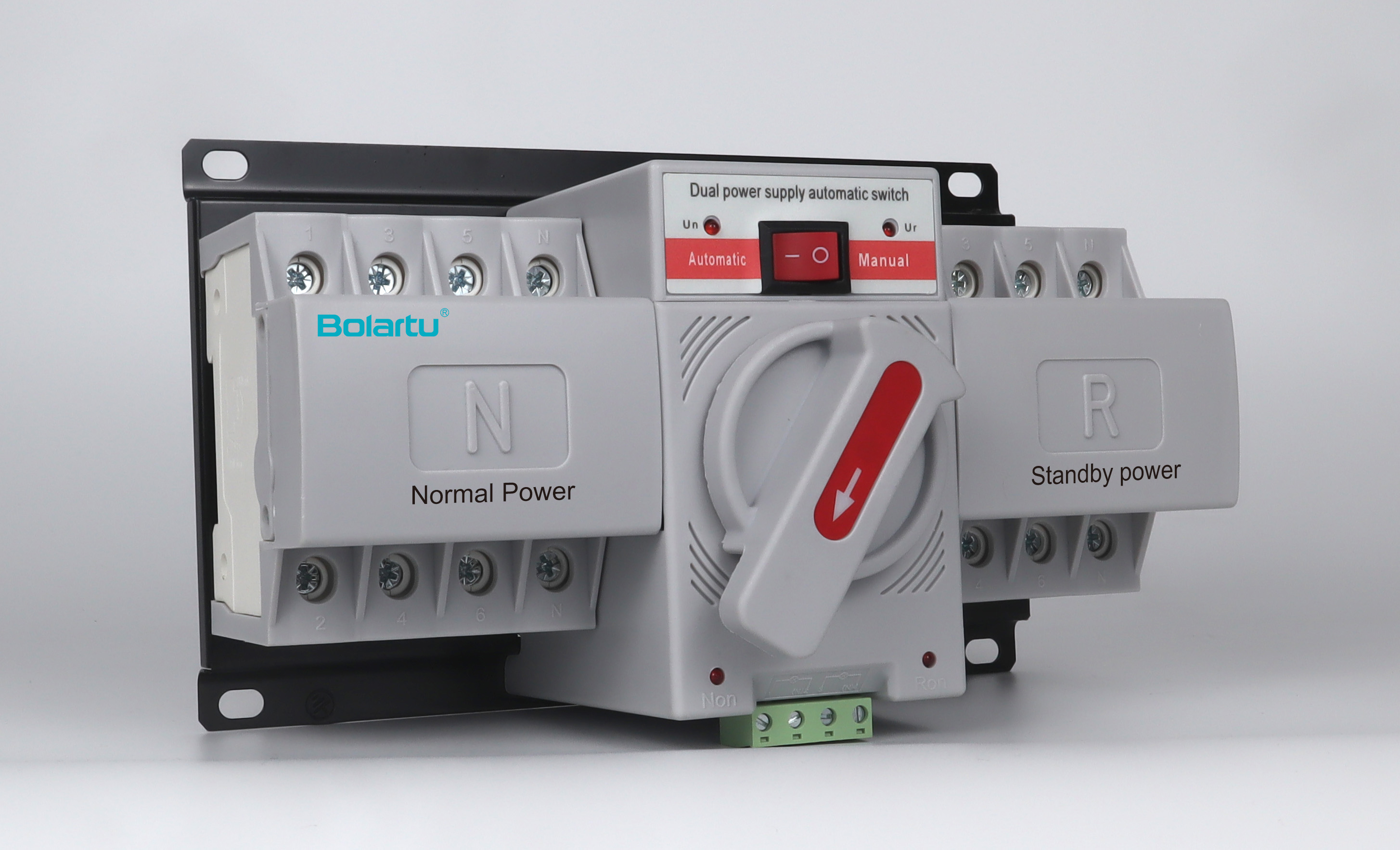

Model A

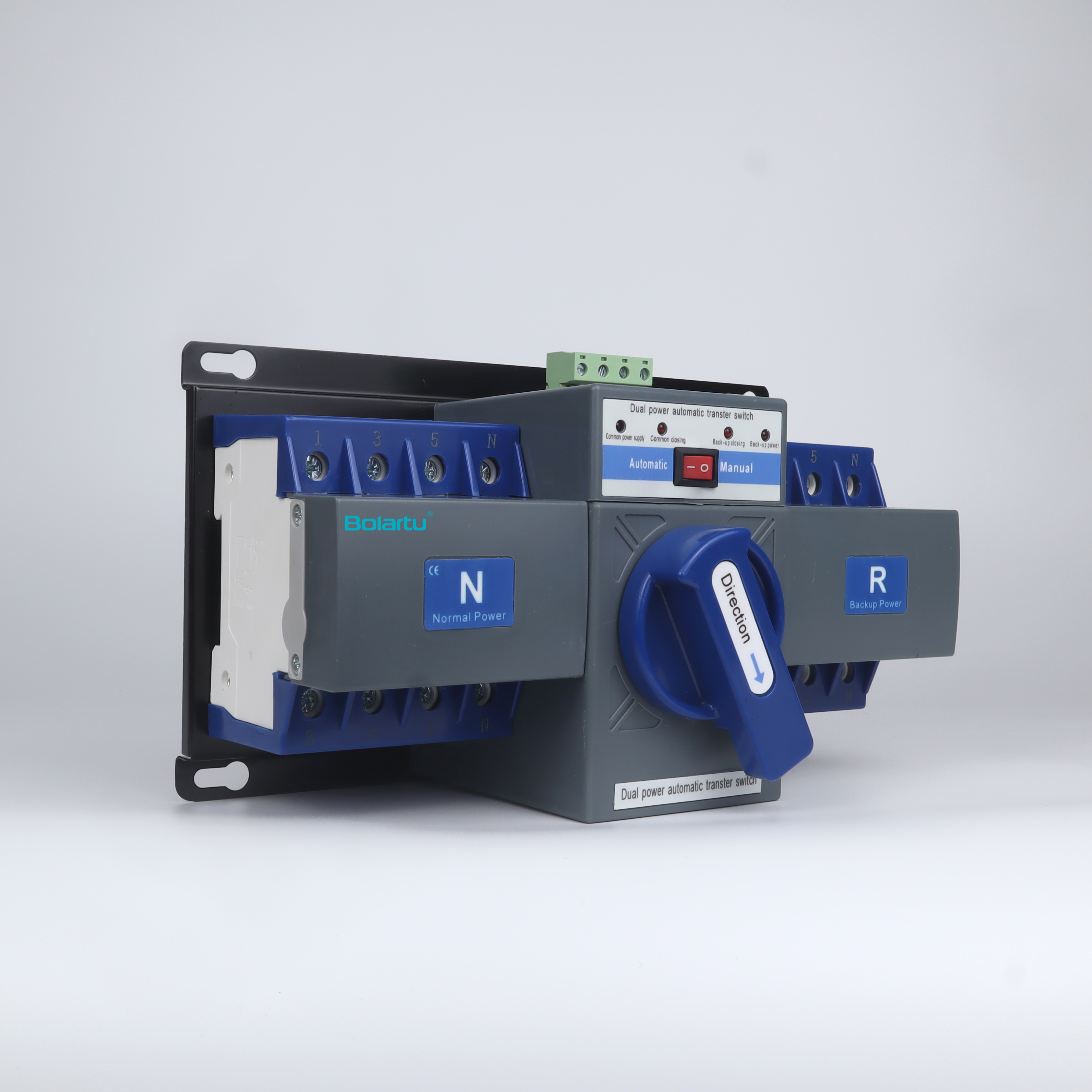

Model B
